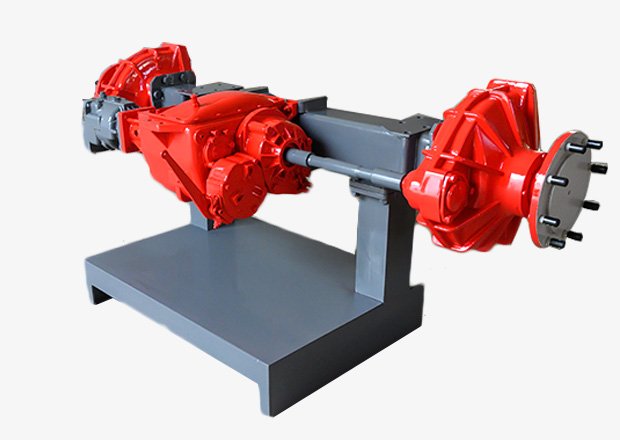

1000 series hydraulic bridge
  • Price:Enquiry
  • Min. Order:100
  • Port:Qingdao
  • Production Capacity:
  • Payment Terms:
  • Type:
  • Application:
  • Material:
  • Usage Method:
  • Customized:
Min. Order:100
Port:Qingdao
Production Capacity:
Payment Terms:
Type:
Application:
Material:
Usage Method:
Customized:

Basic Information
Certification:Trademark:
Swecices:Specification:
Side effect:HS Code:
Usage:Sample:
Delivery Time:Origin:China
Package:
Certification:
Swecices:
Side effect:
Usage:
Delivery Time:
Package:
Trademark:
Specification:
HS Code:
Sample:
Origin:China

Since 2010 the company proposed to engineering machinery hydraulic drive and electric control technology into the idea, the agricultural machinery for three years, through continuous improvement and validation of design, was successfully launched in 2012 is suitable for corn harvester, soybean harvester, rice harvester and silage machines 1000 series hydraulic drive axle of large grain combine harvester,  At the same time, the clutch and stepless torsion increasing device with high failure rate of the original mechanical shift bridge are cancelled from the design, which greatly improves the reliability of the whole machine. The test proves that the harvesting efficiency of the whole machine is increased by more than 30%.


详细资料
平均输入功率 60KW 产 品 特 点
挡位设置 两挡



1、为客户提供整机、传动、液压、动力的匹配最优一体化解决方案,使整机底盘性能最优;

2、整机结构紧凑,可靠性高,故障率几乎为零;

3、两挡设置,操纵简单、方便舒适,节省油料20%,收割效率提高30%以上;

4、采用啮合套或同步器换挡机构,换挡平顺,无顿挫感;

5、铸件全部采用球墨铸件材料;

6、齿轮、轴套全部采用与汽车齿轮相同的材料、加工及热处理工艺,保证了使用性能;

7、齿轮全部延用1000系列变速箱的齿轮模数,传递扭矩大大增强;

8、轴承、油封全部采用国际知名品牌;

9、按照整机性能要求,可以适当调整传动速比;

10、按照客户的需求,可以实现两驱、四驱、防打滑功能。



换挡机构 啮合套/同步器
  工作挡速比 变速箱:12.115
轮边减速器:5.8、7.73
  行走挡速比 变速箱:4.95、5.369
轮边减速器:5.8、7.73
  行驶速度 工作挡:0-12Km/h
行走挡:0-26Km/h
系统最高压力 42MPa
马达接口尺寸 定位孔:φ127,4-M14螺栓,分布圆φ161.9
液压件匹配 根据整机要求,合理匹配泵、马达型号,品牌可选配
  重量 变速箱:180Kg
轮边减速器:160Kg
轮距 根据整机参数而定
承载能力 整机满载10-14吨
适配机型 大型玉米机、籽粒机、青储机、甘蔗机等自走式收获机械
