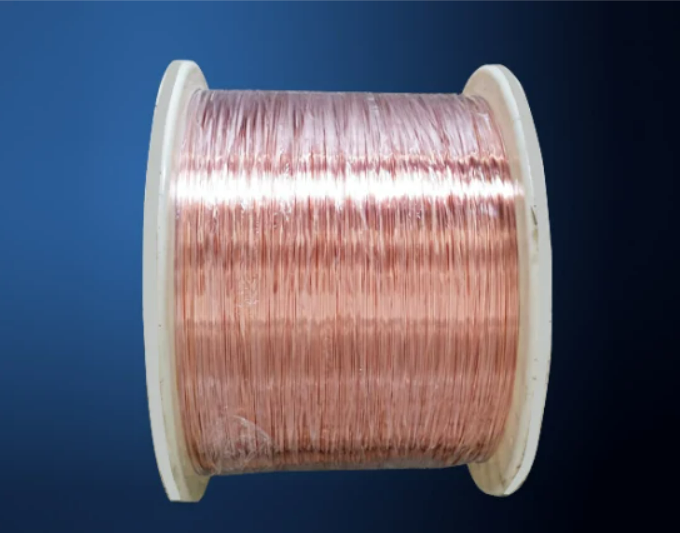

Bare Copper Wire - Metal & Products

Characteristics of bare copper wire
Diameter	Tolerance	Ovality max	Elongatio		Tensile Strength		Electricresistivty
			Elongatio		Tensile Strength		Electricresistivty
			Soft wire	Hard wire	Soft wire	Hard wire	Soft wire	Hard wire
			Soft wire	Hard wire	Soft wire	Hard wire	Soft wire	Hard wire
mm	mm	mm	%		kg/mm2		Ωmm2/m	Ωmm2/m
0.3	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.32	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.36	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.38	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.4	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.41	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.42	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.43	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.44	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.45	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.46	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.47	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.48	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.49	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.5	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.52	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.53	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.54	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.55	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.56	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.58	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.6	±0.004	0.004	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.62	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.65	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.66	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.68	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.7	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.72	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.74	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.75	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.76	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.78	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.79	±0.005	0.005	≥20	≤4	20~28	≥40	≤0.017241	≤0.017960
0.8	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.81	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.82	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.85	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.9	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.95	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
0.98	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.02	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.03	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.05	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.1	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.13	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.15	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.2	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.25	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.3	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.35	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.38	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.4	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.45	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.5	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.6	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.62	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.65	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.7	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.71	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
1.8	±0.005	0.005	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
2	±0.008	0.008	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960
2.13	±0.008	0.008	≥25	≤4	20~28	≥40	≤0.017241	≤0.017960

Min. Order:	500 KGS
Port:	Qingdao
Production Capacity:	300000 Pieces/Day
Payment Terms:	T/T, Western Union, Paypal, Money Gram
Type:	Copper Wire
Application:	Air Condition or Refrigerator, Water Heater, Copper Cable
Material:	Pure Copper
Usage Method:	Air Condition or Refrigerator, Water Heater, Copper Cable
Customized:	Yes

Certification:	ISO9001, RoHS, SGS, Reach	Trademark:	OEM&ODM
Swecices:	OEM&ODM	Specification:	Customized
Side effect:	No Side Effect	HS Code:
Usage:	Air Condition or Refrigerator, Water Heater, Copper Cable	Sample:	Free
Delivery Time:	Shipped in 45 Days After Payment	Origin:	China
Package:	Cartons or depend on requirement

Certification:	ISO9001, RoHS, SGS, Reach
Swecices:	OEM&ODM
Side effect:	No Side Effect
Usage:	Air Condition or Refrigerator, Water Heater, Copper Cable
Delivery Time:	Shipped in 45 Days After Payment
Package:	Cartons or depend on requirement
Trademark:	OEM&ODM
Specification:	Customized
HS Code:
Sample:	Free
Origin:	China
