Alsafe 0.22L to 20L Carbon Fiber High Pressure Hpa Air Bottles

Price:Enquiry
Min. Order:100
Port:Qingdao
Production Capacity: 200000pieces/Year
Payment Terms:T/T, Western Union, Paypal, Money Gram
Type:
Application:
Material:
Usage Method:For External Use
Customized:Yes

Min. Order:	100
Port:	Qingdao
Production Capacity:	200000pieces/Year
Payment Terms:	T/T, Western Union, Paypal, Money Gram
Type:
Application:
Material:
Usage Method:	For External Use
Customized:	Yes

Basic Information

Certification:	CE, FDA and ISO 13485	Trademark:
Swecices:	OEM&ODM	Specification:	GB, EN, DOT, ISO
Side effect:	No Side Effect	HS Code:
Usage:		Sample:	Free
Delivery Time:	Shipped in 15 Days After Payment	Origin:	China
Package:	Carton/Wooden Case/Pallet

Certification:	CE, FDA and ISO 13485
Swecices:	OEM&ODM
Side effect:	No Side Effect
Usage:
Delivery Time:	Shipped in 15 Days After Payment
Package:	Carton/Wooden Case/Pallet
Trademark:
Specification:	GB, EN, DOT, ISO
HS Code:
Sample:	Free
Origin:	China

Product Description
Detailed Photos
Product Parameters
Company Information
Packaging Shipping

Product Description

Alsafe Company, the leading manufacturer of HPA carbon fiber composite bottles.
Products are made from carbon fiber of top grade and Aluminum alloy 6061T.
Good performance and well received at the world market all the time.

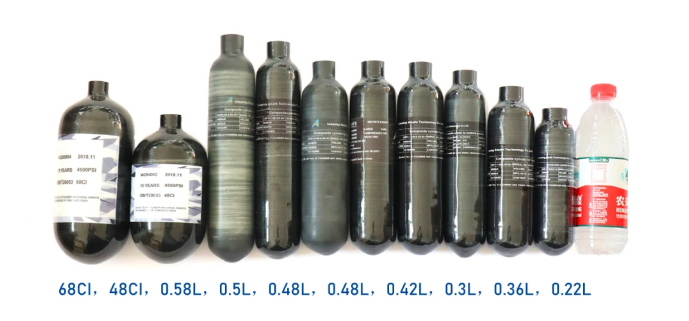

Wide range from 0.22L to 20L water volume, 85mm to 208mm diameter,
working pressure 200bar/300bar. 2900psi/ 4500psi.
Technical standards including DOT, EN and GB for customers' choice.

Extensively adopted for SCBA, CNG, UAV, emergency breathing air equipment and PCP, paintball game.
Various valves, air pump and fill station available for choice.

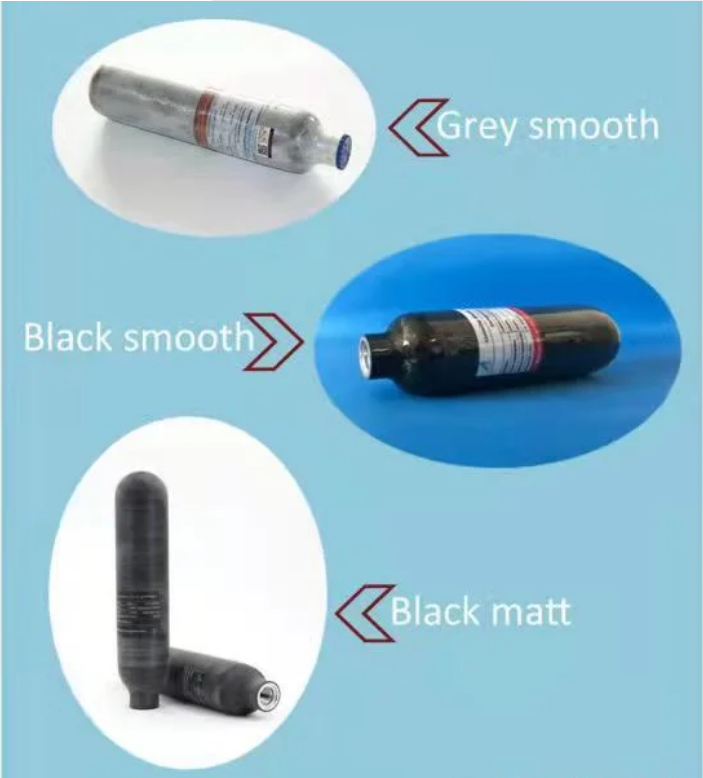

Detailed Photos

Product Parameters

Brief features of the product:

Items	Overview
Materials consist of	Aluminum inner shell, fully wrapped with high strength carbon fiber, glass fiber and epoxy resin.
Ultra standard of safety	Cycling test 10000 times
Ultra lightweight	5 times lighter than comparable steel product.
Strong and thick wall	Design to ensure anti-pressure strength
Test pressure	1.7 times of service pressure
Service pressure	2900psi, 4500psi
Technical standard	EN, DOT, ISO upon customers' demand
Color of product	Grey
Variety of accessories	Fitted upon customers' demand.
Application	Firefighting, paintball and sports, SCBA etc.
Life-span of product	15 years
Recertification period	5 years
Delivery time	6 days to 30 days upon deposit. Shipping empty.

Company Information

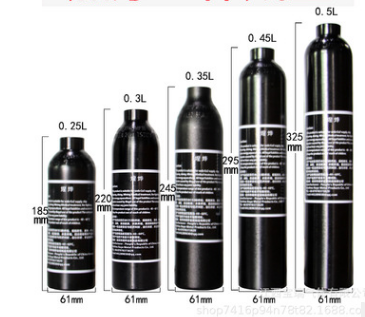

No	Data Type	Outer Diameter	Water Volume	Length	Weight	Working pressure
No	Data Type	(mm)	(litre)	(mm)	(kg)	(psi)	(bar)
1	CRPIII-50-0.22-30-T	54	0.22	194	0.34	4500	300
2	CRPIII-50-0.30-30-T	54	0.3	251	0.46	4500	300
3	CRPIII-50-0.30-30-T	54	0.37	295	0.52	4500	300
4	CRPIII-55-0.35-30-T	61.5	0.35	228	0.48	4500	300
5	CRPIII-55-0.36-30-T	61.5	0.36	228	0.48	4500	300
6	CRPIII-55-0.42-30-T	61.5	0.42	259	0.5	4500	300
7	CRPIII-55-0.45-30-T	61.5	0.45	275	0.55	4500	300
	CRPIII-58-0.48-30-T	62.5	0.48	270	0.45	4500	300
8	CRPIII-55-0.50-30-T	61.5	0.5	300	0.6	4500	300
	CRPIII-58-0.58-30-T	62.5	0.48	315	0.55	4500	300
	700cc	61	0.7	400	0.6	4500	300
9	CRPIII-69-0.60-30-T	78	0.6	253	0.84	4500	300
10	CRPIII-69-0.80-30-T	78	0.8	318	1.02	4500	300
11	CRPIII-78-1.1-30-T	86.5	1.1	311	1.06	4500	300
12	CRPIII-106-1.1-30-T	113	1.1	220	1.02	4500	300
13	CRPIII-106-3.0-30-T	115	3	465	2.18	4500	300
14	CRPIII-124-4.5-30-T	132	4.5	490	3.2	4500	300
15	CRPIII-120-2.4-30-T	129	2.4	301	1.75	4500	300
16	CRPIII-120-2.5-30-T	129	2.5	310	1.8	4500	300
17	CRPIII-120-2.4-20-T	127	2.4	300	1.58	2900	200
18	CRPIII-120-2.5-20-T	127	2.5	309	1.6	2900	200
19	CRPIII-124-2.7-30-T	132	2.7	310	1.7	4500	300
20	CRPIII-145-6.8-30-T	158	6.8	537	4.1	4500	300
21	CRPIII-161-9.0-30-T	172	9	575	5.2	4500	300
22	CRPIII-192-12.0-30-T	210	12	555	6.5	4500	300
23	CRPIII-192-20.0-30-T	210	20	850	9	4500	300
